J6F Series

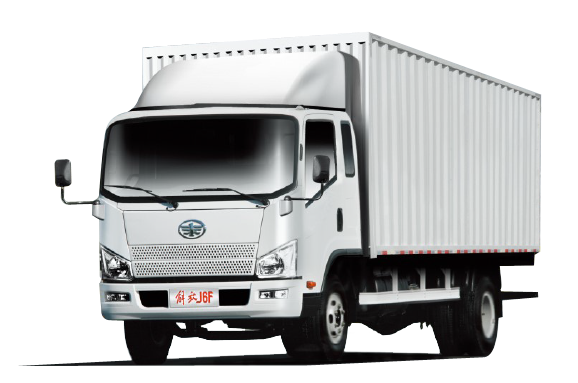

Model CA1086 4x2 Light Truck

FAW's J6F light truck range incorporates over 60 years of commercial truck making experience to bring you higher productivity and lower cost of ownership. Efficient low cab forward design allows for superior maneuverability and load distribution, plus entry and exit is safer and easier. Available in 110, 120 and 130 horsepower ratings, fuel efficient and environmentally friendly FAW 3.0 liter diesel engines feature the latest technologies including high pressure (1800 Bar) common rail fuel injection and a double overhead camshaft (DOHC) design for optimum performance. The engine's virtually flat torque curve from 1400 rpm enhances driveablity for more efficient operation. Euro IV engines utilize a combination of exhaust gas recirculation (EGR) combined with a diesel oxygen catalyst (DOC) and particulate oxidation catalyst (POC). Euro V engines utilize a variable geometry turbocharger (VGT) and cooled exhaust gas recirculation (EGR), combined with a diesel oxygen catalyst (DOC) and particulate oxidation catalyst (POC).

Front Axle Curb Weight (kg)

1,940

Rear Axle Curb Weight (kg)

1,640

Total Curb Weight (kg)

3,580

Front GAW (gross axle weight) (kg)

3,000 (design)

Rear GAW (gross vehicle weight) (kg)

5,000 (design)

Max. GVW (gross vehicle weight) (kg)

8,000 (design)

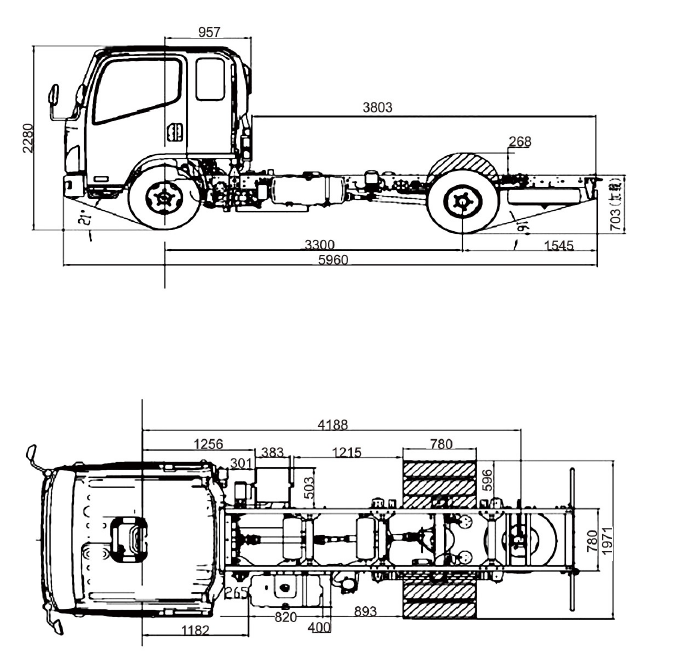

Overall Dimensions (mm)

Length

6,955

Width

2,096

Height

2,335

Cab to End of Frame (mm)

4,788

Cab to Rear Axle (mm)

2,888

Rear Axle to End of Frame (mm)

1,900

Wheelbase (mm)

3,900

Min. Turning Diameter (m)

15.9

Note: The information in this page was accurate at the date of publication, based on the latest product information available at that time. FAW reserves the right to make changes in equipment, specifications, and design without notice at any time. Some models shown may include optional equipment. Warranty terms and services may vary in certain countries.
